Specialist repair and rewind support for the wet-stator motors at the heart of sealless Boiler Circulation Pumps.
The motor is the heart of a sealless boiler circulation pump. Its stator and rotor run in water at system pressure and temperature, so the winding insulation, protective cans and bearings all work under demanding conditions. When something fails, a general motor shop is not enough. DEI VOX repairs and rewinds BCP wet-stator motors as a dedicated specialty.
Service Detail
Understanding the BCP Motor
In a sealless BCP, the pump and motor share one shaft inside a single pressure boundary. That removes the shaft seal and its leak path. The motor is a water-filled induction motor: a thin stator can protects the windings, a rotor can protects the rotor, and circulating water lubricates the internal bearings. A cooling circuit keeps the motor cavity at a safe temperature. Winding insulation, can integrity, bearings and cooling-water quality all affect motor life.
Service Detail
Signs Your BCP Motor Needs Attention
- Falling insulation-resistance readings
- Changes in winding resistance or phase imbalance
- Rising vibration or unusual noise
- Rising motor-cavity temperature or cooling-circuit problems
- Evidence of water or debris contamination in the motor
- Bearing wear found during an inspection or outage
- Trips or abnormal current during start-up or warm standby
If you see these signs, send the nameplate, test readings and fault history for a free technical opinion.
Service Detail
Motor Repair & Rewinding Services

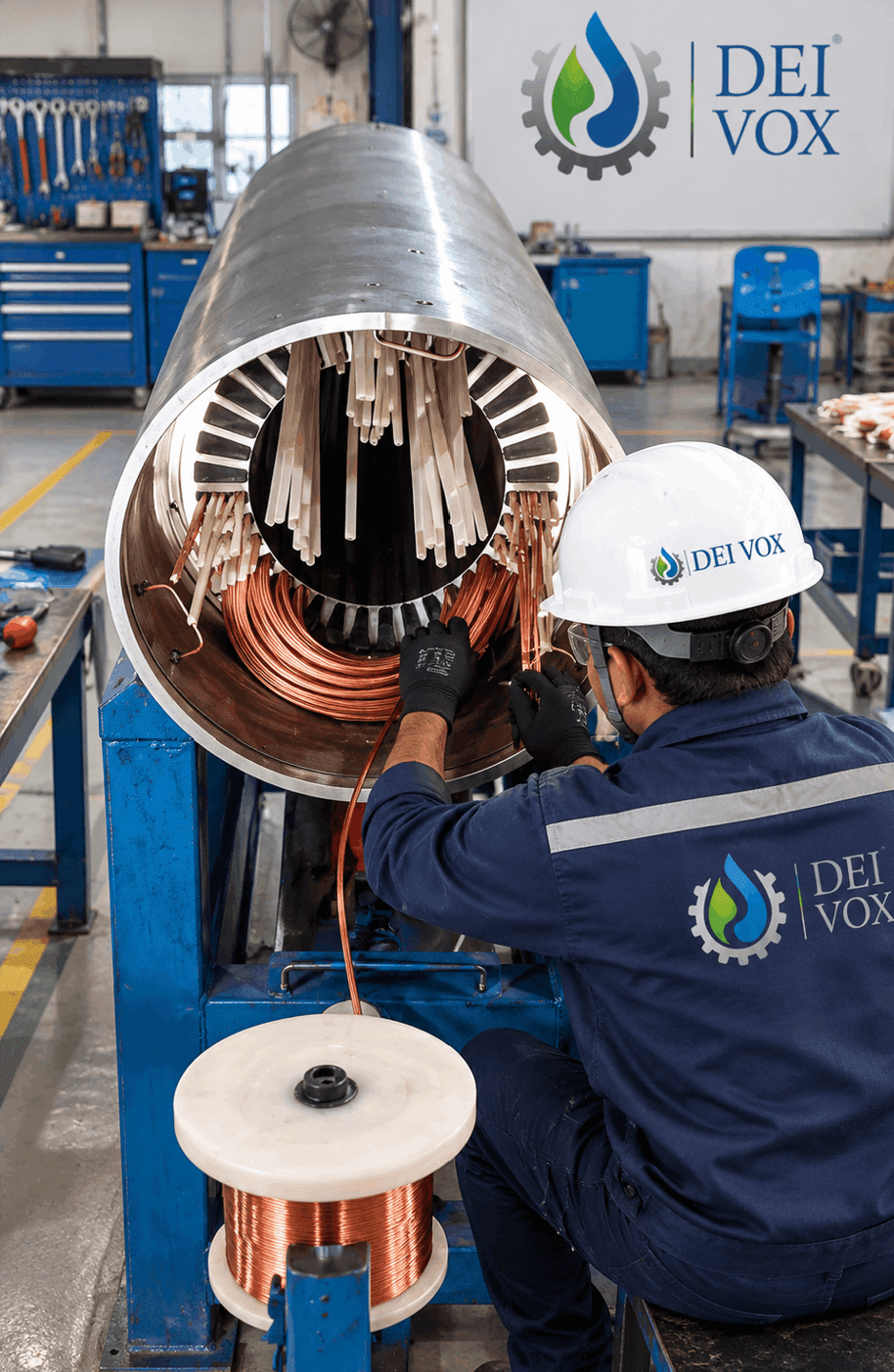

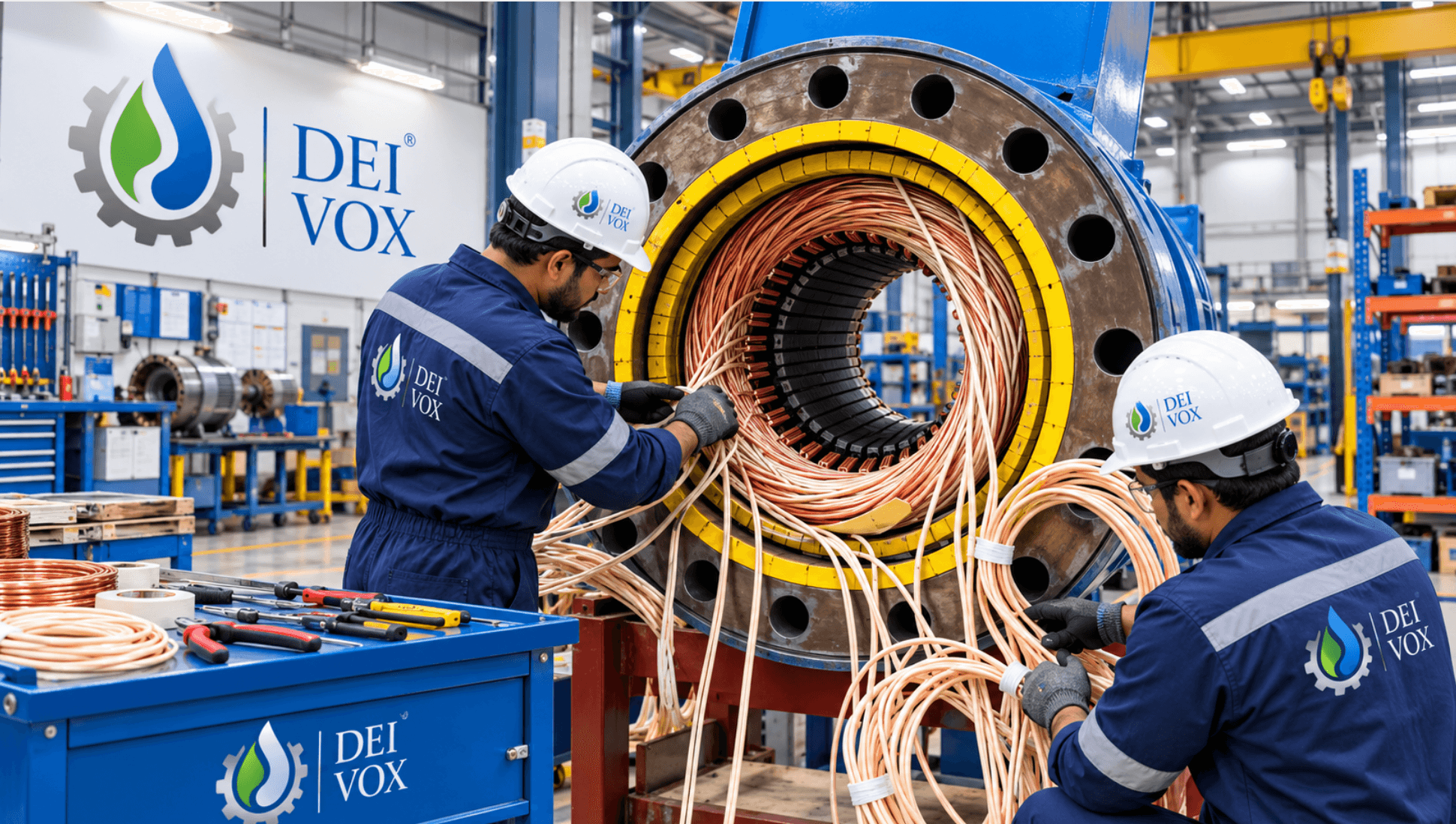

Rewinding
Removal of failed windings and rewinding to the required design and insulation system.
Stator and rotor cans
Inspection, repair or replacement, subject to assessment.
Bearing restoration
Journal and thrust bearing inspection, refurbishment or replacement.
Rotor and assembly
Rotor balancing and assembly checks.
Cooling and pressure boundary
Cooling-circuit and pressure-boundary checks.
Testing & documentation
Records of the tests carried out.
Obsolete components
Reverse engineering of motor components from measurements and samples.
Complete pump overhaul
Motor and hydraulic end can be serviced together when required.
Service Detail
Our Repair & Rewinding Process
- 01
Receipt & incoming inspection
The motor is logged, photographed and checked against the nameplate and available drawings.
- 02
Initial electrical tests
Insulation resistance, winding resistance and other applicable tests are recorded before teardown.
- 03
Teardown & condition report
Components are measured; the failure mode and likely root cause are documented.
- 04
Scope & quotation
A clear scope, price and timeline are provided for approval before work proceeds.
- 05
Rewinding & repair
Work follows controlled procedures, with materials and insulation system matched to the design.
- 06
Reassembly & fit checks
Clearances, alignment and assembly dimensions are verified.
- 07
Final testing
Electrical, pressure-boundary and mechanical checks are carried out as applicable.
- 08
Documentation & dispatch
Test records and a repair summary accompany export-ready packing.
